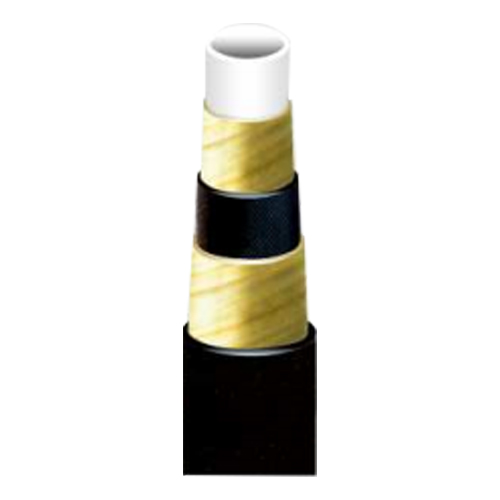

SAE 100R7 Fiber Braided High Pressure Thermoplastic Hose

Smooth cover

Inner tube: Nylon.

Reinforcement: 1 or 2 Layers of synthetic fiber braid.

Cover: Black or other color polyurethane.

Standard: SAEJ517 100RAT Standard.

Temperature range: -40°C to +100°C.

Application: Suitable for transfer petroleum and water based hydraulic oil, Which could be used as lubrication lines and blowout

preventer control line etc. Widely application on hydraulic lifts, agricultural machines and construction machines

Features

Lightweight: Thermoplastic hoses are typically lighter than their rubber counterparts, making them easier to handle and install.

High Pressure Capability: They can withstand high-pressure applications, making them suitable for heavy-duty hydraulic systems.

Flexibility: Thermoplastic hoses are highly flexible, which allows them to bend and adapt to the shape of the hydraulic system, making installation easier.

Chemical Resistance: They are resistant to many chemicals and oils, which can extend their lifespan in harsh environments.

Abrasion Resistance: Thermoplastic hoses can resist abrasion and wear, ensuring they maintain their integrity over time.

Low Permeability: These hoses have low permeability, which means they are less likely to allow hydraulic fluids to leak through the hose walls.

Wide Temperature Range: They can operate effectively in a broad temperature range, from cold to hot conditions.

Quick Assembly: Thermoplastic hoses often use reusable fittings and can be easily assembled on-site, reducing downtime during maintenance and repairs.

UV Resistance: Some thermoplastic hoses are UV-resistant, making them suitable for outdoor applications.

Customization: They can be manufactured in various lengths and diameters to suit specific hydraulic system requirements.
