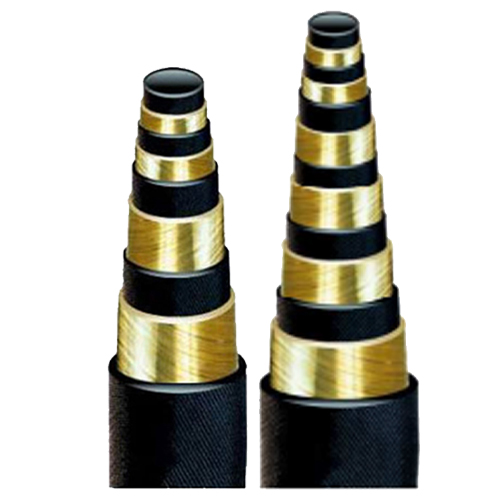

SAE 100R13 Steel Wire Spiral Hose

Wrapped cover / Smooth cover

Inner tube: Excellent oil resistant synthetic rubber.

Reinforcement: 4 or 6 Layers of high tensile copper-coated steel wire spiral.

Cover: Oil, abrasion and anti-aging synthetic rubber.

Standard: SAE100R13 Standard

Temperature range: -40°C to +121°C.

Application: For the delivery of petroleum based hydraulic fluids.

Features

High Pressure: SAE 100R13 hose is rated for working pressures of up to 5,000 psi, making it suitable for use in high-pressure hydraulic systems.

High-Impulse: This hose is designed to withstand high impulse pressure and cyclic pressure stress, making it ideal for use in high-impact applications.

Multi-layer Construction: SAE 100R13 hose features a multilayer construction, with four or six layers of spirally-wrapped steel wire reinforcement, which provides

superior strength and flexibility.

Abrasion and Weather Resistance: The outer cover of the hose is made from abrasion-resistant synthetic rubber, which protects the hose from damage and

extends its service life. It is also resistant to weather and ozone, ensuring that it can be used in a variety of environments.

Versatile Applications: This hose is suitable for use in a wide range of hydraulic applications, including mining, construction, and agricultural machinery.
