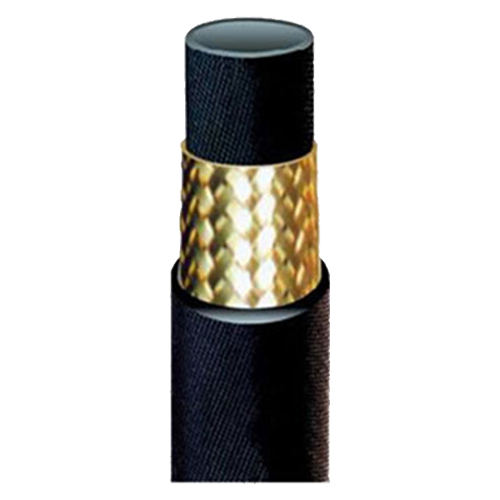

Wire Braid Reinforcement Textile Covered Hose SAE 100R5

Textile braided cover

Inner tube: Excellent oil resistant rubber

Reinforcement: 1 Layer of copper-coated steel wire braid.

Cover: Black, oil resistant textile braid.

Standard: SAEJ517 100RATStandard.

Temperature range: -40°C to +100°C.

Application: For the delivery of hydraulic liquids or water based liquids.

Features

Construction: SAE 100R5 hoses are constructed with a single wire braid reinforcement and a textile braid cover.

The inner tube is made of oil-resistant synthetic rubber.

Temperature Range: SAE 100R5 hoses are designed to operate in a temperature range of -40°F to 212°F (-40°C to 100°C).

Application: These hoses are commonly used in medium-pressure hydraulic systems, air brake lines, power steering lines,

and other applications in the transportation industry.

Compatibility: SAE 100R5 hoses are compatible with a variety of fluids, including hydraulic oils, gasoline, diesel fuel, air,

water, and some refrigerants.

Standards: These hoses are manufactured to meet or exceed the performance requirements of SAE 100R5 specifications, which

include pressure, temperature, and compatibility standards.

Versatility: SAE 100R5 hoses are versatile and can be used in a variety of applications, including in the agricultural,

construction, and industrial sectors.
