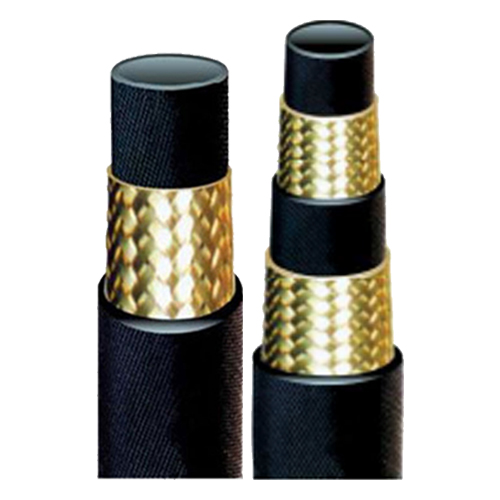

SAE 100R16 Compact Hydraulic Hose

Wrapped cover/ Smooth cover

Inner tube: Excellent oil resistant rubber.

Reinforcement: 1 or 2 Layers of high tensile copper-coated steel wire braid.

Cover: Abrasion and anti-aging synthetic rubber.

Standard: SAEJ517 100RAT Standard.

Temperature range: -40°C to +121°C.

Application: For the delivery of hydraulic liquids or water based liquids.
