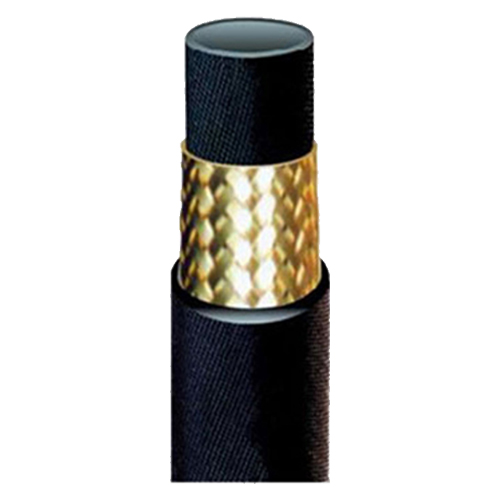

DIN EN857 1SC Compact Hydraulic Hose (no skive hose)

Wrapped cover / Smooth cover

Inner tube: Excellent oil resistant rubber.

Reinforcement: 1 Layer of high tensile copper-coated steel wire braid.

Cover: Abrasion and anti-aging synthetic rubber.

Standard: DIN EN857 Standard.

Temperature range: -40°C to +125°C.

Application: For the delivery of hydraulic liquids or water based liquids.

*This hose has a smaller outer diameter than 1SN/R1AT hoses, solving the inconvenience of tight installation

spaces in some equipment. It also eliminates the need to peel the outer rubber when crimp the fittings.
