SAE100 R2AT/DIN EN853 2SN Super Soft Series Hydraulic Hose

Wrapped cover/ Smooth cover

Inner tube: Excellent oil resistant rubber.

Reinforcement: 2 Layer of high tensile copper-coated steel wire braid.

Cover: Abrasion and anti-aging synthetic rubber.

Temperature range: -40℃ to +125℃.

Application: For the delivery of hydraulic liquids or water based liquids.

Product Description

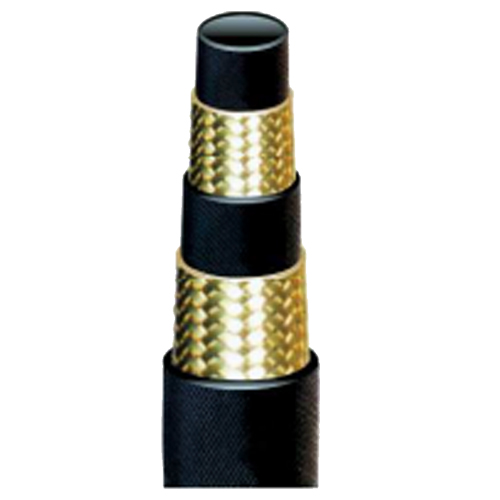

Structure: it is composed of three parts: inner tube, reinforcement and cover.

Inner tube: high quality oil resistant synthetic rubber, making the hose work well in delivering oils.

Reinforcement: two layers of high tensile braided steel wire, making the hose work well in high pressure environment.

Cover: high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging and cut.

Applications:

The SAE 100R2 hose is suitable for delivering hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.

Industrial machinery: SAE 100R2 hoses are often utilized in industrial machinery, such as hydraulic presses, machine tools, and conveyor

systems. These hoses help transmit hydraulic fluid to operate various components and ensure smooth and reliable operation.

Construction equipment: Hydraulic systems are extensively used in construction machinery like excavators, loaders, and cranes. SAE 100R2

hoses provide the necessary hydraulic power to control the movement of different parts, such as booms, buckets, and outriggers.

Agricultural machinery: Tractors, harvesters, and other agricultural equipment heavily rely on hydraulic systems for functions like lifting,

steering, and operating attachments. SAE 100R2 hoses are suitable for transmitting hydraulic fluid in these applications.

Automotive industry: SAE 100R2 hoses can also be found in the automotive sector, where they are used for power steering systems, braking

systems, and suspension systems. These hoses facilitate the transfer of hydraulic fluid to ensure proper operation and control of these systems.
