S51A Skiving Machine
Variety of skiving kit available; Skiving up to 2 inch hose;
Description
Package Information
Inquiry

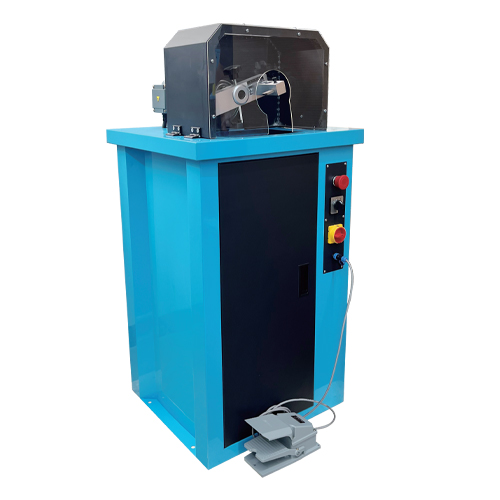

The S51A is a skiving machine that prepares hydraulic hoses for high demanding crimping up to 2 inches hoses. The machine is ergonimically designed for
efficiency and ease of use. It has adjustable tooling and several sizes tools available, saves tool costs and maximizes productivity.
Features
User-friendly operation for optimal results
Protective hood safety flap for injury-free work

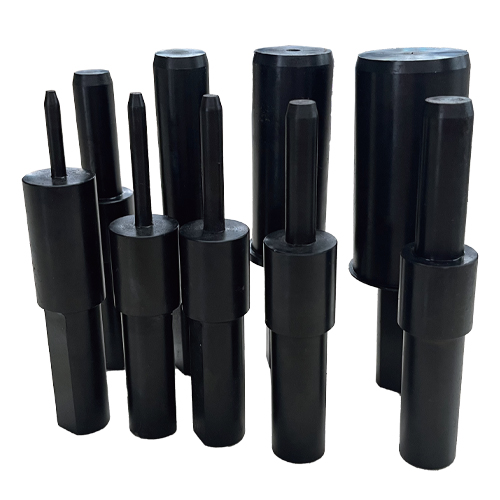

Inner and outer skiving kit available – efficient
Easily adjustable with one screw
Additional waste bin, makes work clean
Separate toolrack, single sided blade holder
Technical data
| Hose capacity, external inch | 0.25"-2" |
| Hose capacity, internal inch | 0.75"-2" |
| Electric motor (kW) | 0.4 kW |
| Rotation speed | 190 r/m |
| Motor Voltage (V): Tri | 200 / 220 / 380 |
| Motor Voltage (V): Mono | 220 / 230 / 240 |
| Standard Skiving Kit |
| External (inch) | 1/4 |
| 5/16 | |
| 3/8 | |
| 1/2 | |
| 5/8 | |
| External & Internal (inch) | 3/4 |
| 1 | |
| 1¼ | |
| 1½ | |
| 2 |
| Dimension (L×W×H) | |
| Machine (mm) | 600×540×1100 |
| Machine (inch) | 23.6×21.3×43.3 |
| Package (mm) | 610×610×1250 |
| Package (mm) | 24.0×24.0×49.2 |
| Weight (KG) | |
| N.W. | 55 |
| G.W. | 72 |
