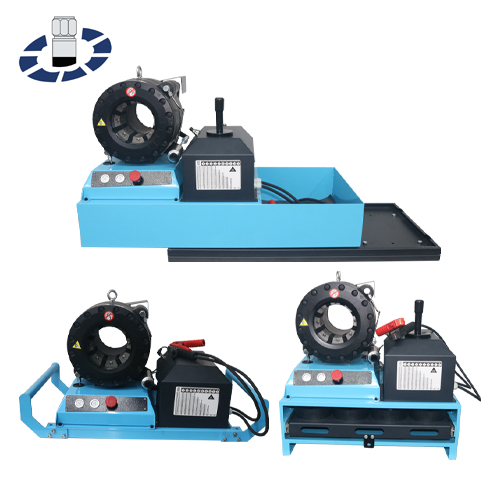

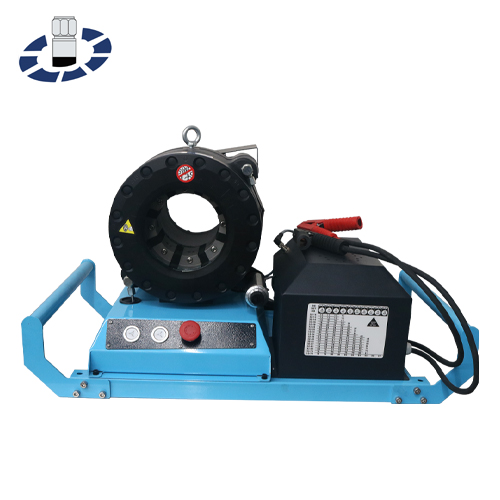

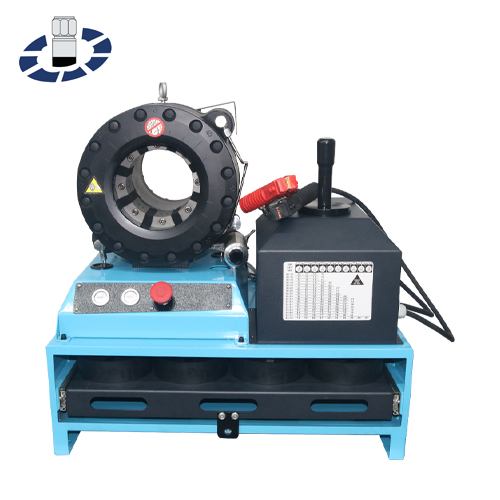

P20DC Car Load
The P20DC series hose crimping machine is car load type, designed to crimp up to 1.5 inches hose and equipped with 137T (1370KN) hydraulic pressure,
forged machine head + flange + piston, Argo Hytos Valve, and other top brand parts.
With its innovative design, high level of user-friendliness, versatility and long service life, the P20DC series machine marks for quality and efficiency. It is
perfect for movable use up to 1.5 inches suitable for fast and remote respond repair and maintenance.
Features
Car load design allows fast repond, easy operation, variety of forms to meet different usage needs
High-quality forged integrated machine head, low noise level due to high quality pumps
Reinforced molds optimize product quality, crimping most of fittings due to long base dies
Fixed 8 o'clock jaw safe and force-saving positioning of the workpiece
Top quality parts maximum productivity, extend service life
Reduces press force loss by up to 10-20%, consistenly accurate crimp force
Technical data
| Max crimping dia (mm) | 10-61 |
| Max crimping dia (inch) | 0.39-2.40 |
| Max crimping force (kN) | 1370 |
| Max crimping force (Ton) | 137 |
| Cycle time 10mm(s) | 7.2 |
| Hose size ID (inch) | 1.5 (2SN) / 1.25 (4SP) |
| Dies set series | P20 |
| Max opening (mm) | +25 |
| Max opening witout dies (mm) | 109 |
| Master die D/L (mm) | 84/80 |
| Master die D/L (inch) | 3.31/3.15 |
| Motor (kW) 12V/24V | 1.6/2.25 |
| Motor (hp) 12V/24V | 2.1/3.05 |
| Oil tank volume (L) | 6 |
| Crimping capacity (pcs/hr) | 200 |
P20 Dies set (9 sets of standard)
| Dies set No. | Crimping range | ID (mm) | L (mm) |
| *P20/06 | 6.0-8.0 | 6 | 55 |
| *P20/08 | 8.0-10.0 | 8 | 55 |
| *P20/10 | 10.0-12.0 | 10 | 55 |
| *P20/12 | 12.0-14.0 | 12 | 55 |
| P20/14 | 14.0-16.0 | 14 | 55 |
| P20/16 | 16.0-19.0 | 16 | 55 |
| P20/19 | 19.0-23.0 | 19 | 55 |
| P20/23 | 23.0-27.0 | 23 | 55 |
| P20/27 | 27.0-31.0 | 27 | 70 |
| P20/31 | 31.0-36.0 | 31 | 70 |
| P20/36 | 36.0-41.0 | 36 | 75 |
| P20/41 | 41.0-47.0 | 41 | 75 |
| P20/47 | 47.0-52.0 | 47 | 85 |
| *P20/52 | 52.0-60.0 | 52 | 85 |
* : Non standard die
Dimension (L×W×H)
Machine (mm) 870×550×480
Machine (inch) 34.3×21.6×18.9
Package (mm) 910×630×650
Package (mm) 35.8×24.8×25.5
Weight (KG)
N.W. 125
G.W 150
