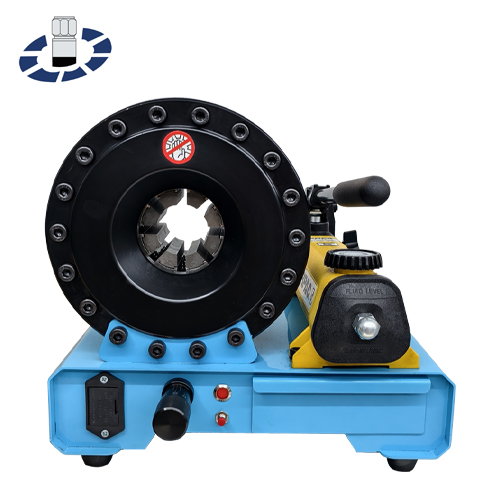

P16HP Manual Pump
The P16HP hose crimping machine is designed for portable usage and crimping up to 1 inches hose and equipped with 95T (955KN) hydraulic pressure,
forged machine head + flange + piston, Japan sensor, and other top brand parts.

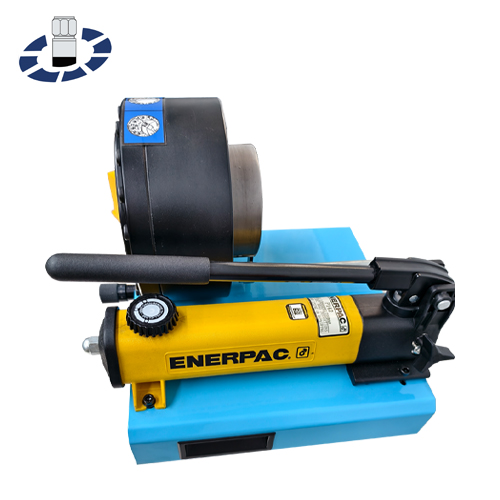

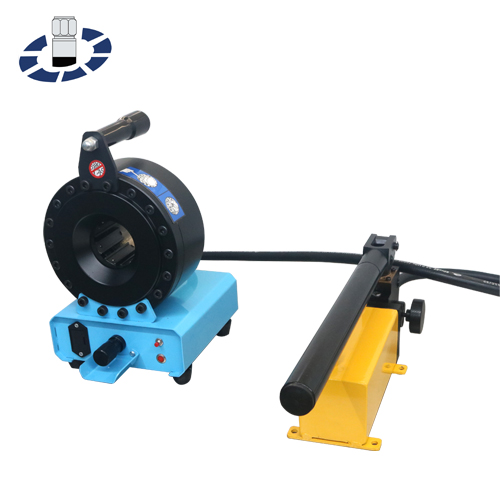

There are three types of hand pumps available, regular pump, ENERPAC pump and rapid pump. With its compact and light design, easy operation, and long service life,
it is very perfect for home use, or rapid respond on site repair for small shops or professional maintenance workers.
Features
Compact and light, with large opening up to crimping 1 inch hose
Three types of pumps available, flexibly portable to any location
Finds place in any workshop, ideal for on-site service
Extremely low operating costs, suitable for home use and independent workers
High-quality machine head and imported components, high process stability and repeatability
Hand pump, long service life, extremely low maintenance time
Technical data
| Max crimping dia (mm) | 10-45 |
| Max crimping dia (inch) | 0.39-1.77 |
| Max crimping force (kN) | 955 |
| Max crimping force (Ton) | 95 |
| Cycle time 10mm(s) Tri/Mono | -- |
| Hose size ID (inch) | 1 |
| Dies set series | P16 |
| Max opening (mm) | +20 |
| Max opening witout dies (mm) | 59 |
| Master die D/L (mm) | 39/64 |
| Master die D/L (inch) | 1.54/2.52 |
| Motor (kw/hp) | hand pump |
P16 Dies set (7 sets of standard)
| Dies set No. | Crimping range | ID (mm) | L (mm) |
| *P16/06 | 6.0-8.0 | 6 | 65 |
| *P16/08 | 8.0-10.0 | 8 | 65 |
| *P16/10 | 10.0-12.0 | 10 | 65 |
| *P16/12 | 12.0-14.0 | 12 | 65 |
| P16/14 | 14.0-16.0 | 14 | 65 |
| P16/16 | 16.0-19.0 | 16 | 65 |
| P16/19 | 19.0-23.0 | 19 | 65 |
| P16/23 | 23.0-27.0 | 23 | 65 |
| P16/27 | 27.0-31.0 | 27 | 65 |
| P16/31 | 31.0-38.0 | 31 | 65 |
| P16/35 | 38.0-38.0 | 35 | 65 |
* : Non standard die
Dimension (L×W×H)
Machine (mm) 380×310×210
Machine (inch) 15×12.2×8.3
Package (mm) 450×350×350
Package (mm) 17.7×13.7×13.7
Weight (KG)
N.W. 26
G.W 35
