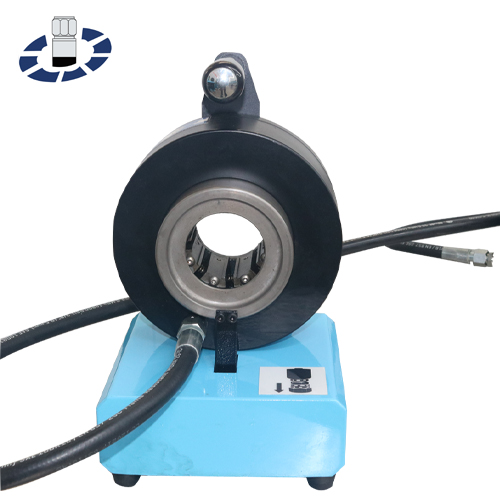

P16HPZ Split Design
The P16HPZ hose crimping machine is designed for portable usage and crimping up to 1 inches hose and equipped with 95T (955KN) hydraulic pressure,
forged machine head + flange + piston, Japan sensor, and other top brand parts.

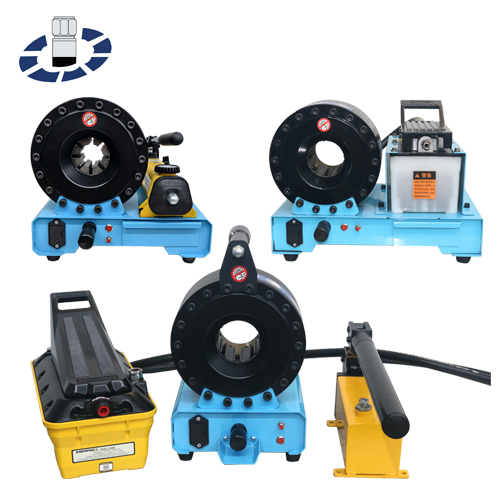

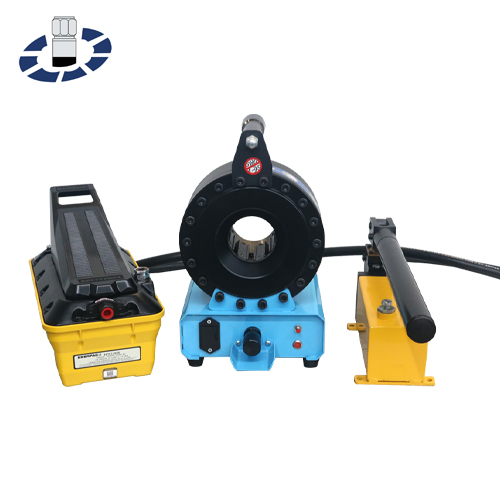

There are five types of hand pumps available, hand pump, pneumatic pump and rapid pump. Due to split design with customizable hose length, it is very perfect for
home use, or rapid respond on site repair for small shops or professional maintenance workers, and suitable for different working conditions.
Features
Split and light design, with large opening up to crimping 1 inch hose
Five types of pumps available, flexibly portable to any location
Finds place in any workshop, ideal for on-site service
Extremely low operating costs, suitable for home use and independent workers
High-quality machine head and imported components, high process stability and repeatability
Hand pump and pneumatic pump available, suitable for different working conditions
Technical data
| Max crimping dia (mm) | 10-45 |
| Max crimping dia (inch) | 0.39-1.77 |
| Max crimping force (kN) | 955 |
| Max crimping force (Ton) | 95 |
| Cycle time 10mm(s) Tri/Mono | -- |
| Hose size ID (inch) | 1 |
| Dies set series | P16 |
| Max opening (mm) | +20 |
| Max opening witout dies (mm) | 59 |
| Master die D/L (mm) | 39/64 |
| Master die D/L (inch) | 1.54/2.52 |
| Motor (kw/hp) | hand pump |
P16 Dies set (7 sets of standard)
| Dies set No. | Crimping range | ID (mm) | L (mm) |
| *P16/06 | 6.0-8.0 | 6 | 65 |
| *P16/08 | 8.0-10.0 | 8 | 65 |
| *P16/10 | 10.0-12.0 | 10 | 65 |
| *P16/12 | 12.0-14.0 | 12 | 65 |
| P16/14 | 14.0-16.0 | 14 | 65 |
| P16/16 | 16.0-19.0 | 16 | 65 |
| P16/19 | 19.0-23.0 | 19 | 65 |
| P16/23 | 23.0-27.0 | 23 | 65 |
| P16/27 | 27.0-31.0 | 27 | 65 |
| P16/31 | 31.0-38.0 | 31 | 65 |
| P16/35 | 38.0-38.0 | 35 | 65 |
* : Non standard die
Dimension (L×W×H)
Machine (mm) 380×310×210
Machine (inch) 15×12.2×8.3
Package (mm) 450×350×350
Package (mm) 17.7×13.7×13.7
Weight (KG)
N.W. 26
G.W 35
