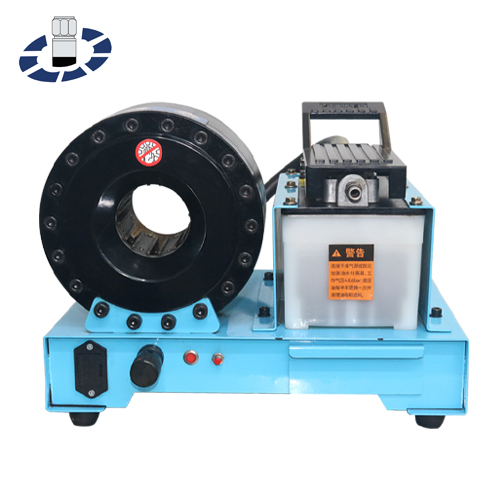

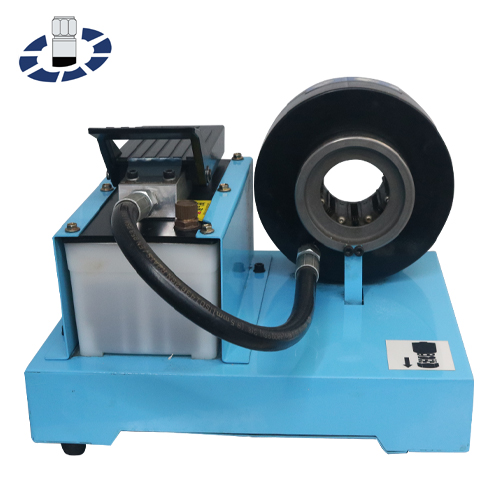

P16AP Pneumatic Pump
The P16AP hose crimping machine is designed for portable usage and crimping up to 1 inches hose and equipped with 95T (955KN) hydraulic pressure,
forged machine head + flange + piston, Japan sensor, and other top brand parts.

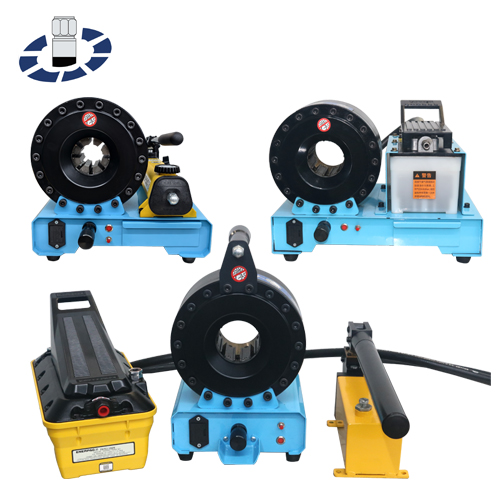

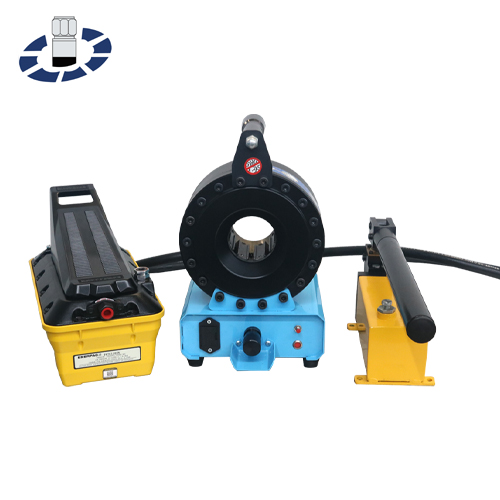

There are two types of pneumatic pumps available, regular pump and ENERPC pump. Due to compact and light design, faster speed than hand pump, and labor
saving, it is very perfect for rapid respond on site repair for small shops, or professional maintenance workers in factories.
Features
Compact and light design, with large opening up to crimping 1 inch hose
Two types of pumps available, flexibly portable to any location
Finds place in any workshop, ideal for on-site service
Extremely low operating costs, suitable for factory maintenance workers
High-quality machine head and imported components, high process stability and repeatability
Pneumatic pump available, labor saving, faster than hand pump
Technical data
| P16系列 | |
| Max crimping dia (mm) | 10-45 |
| Max crimping dia (inch) | 0.39-1.77 |
| Max crimping force (kN) | 955 |
| Max crimping force (Ton) | 95 |
| Cycle time 10mm(s) Tri/Mono | -- |
| Hose size ID (inch) | 1 |
| Dies set series | P16 |
| Max opening (mm) | +20 |
| Max opening witout dies (mm) | 59 |
| Master die D/L (mm) | 39/64 |
| Master die D/L (inch) | 1.54/2.52 |
| Motor (kw/hp) | hand pump |
P16 Dies set (7 sets of standard)
| Dies set No. | Crimping range | ID (mm) | L (mm) |
| *P16/06 | 6.0-8.0 | 6 | 65 |
| *P16/08 | 8.0-10.0 | 8 | 65 |
| *P16/10 | 10.0-12.0 | 10 | 65 |
| *P16/12 | 12.0-14.0 | 12 | 65 |
| P16/14 | 14.0-16.0 | 14 | 65 |
| P16/16 | 16.0-19.0 | 16 | 65 |
| P16/19 | 19.0-23.0 | 19 | 65 |
| P16/23 | 23.0-27.0 | 23 | 65 |
| P16/27 | 27.0-31.0 | 27 | 65 |
| P16/31 | 31.0-38.0 | 31 | 65 |
| P16/35 | 38.0-38.0 | 35 | 65 |
* : Non standard die
Dimension (L×W×H)
Machine (mm) 370×400×290
Machine (inch) 14.5×15.7×11.4
Package (mm) 500×420×420
Package (mm) 19.6×16.5×16.5
Weight (KG)
N.W. 30
G.W 38
