C350A Cutting Machine
Laser positioning; toothed Blade (high speed steel); cutting up to 2 inch hoses;
Description
Package Information
Inquiry

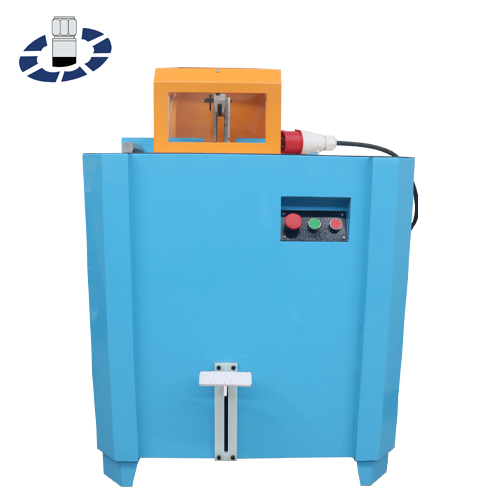

The C350A hose cutting machine is designed to cutting up to 2 inches hose with laser positioning function. With laser positioning, high speed steel of toothed blade,
and foot pedals, the C300A is very suitable for making hose assembly for high-end customers.
Features
Laser positioning function, more precision and fast
Equipped with foot pedals user-friendly operation for optimal results
Protective hood safety flap for injury-free work
Technical data
| Max hose size (inch) | 2*4SH |
| Diameter (blade) ext (mm) | 300*25 |
| Motor (kW):Tri/Mono | 3 |
| Motor (HP):Tri/Mono | 4 |
| Velocity 50Hz (rpm) | 2850 |
| Velocity 60Hz (rpm) | 3370 |
| Motor Voltage (V):Tri | 220 / 380 / 400 |
| Motor Voltage (V):Mono | 110 / 120 / 230 / 240 |
| Dimension (L×W×H) | |
| Machine (mm) | 600×540×1100 |
| Machine (inch) | 23.6×21.3×43.3 |
| Package (mm) | 610×610×1250 |
| Package (mm) | 24.0×24.0×49.2 |
| Weight (KG) | |
| N.W. | 115 |
| G.W. | 125 |
