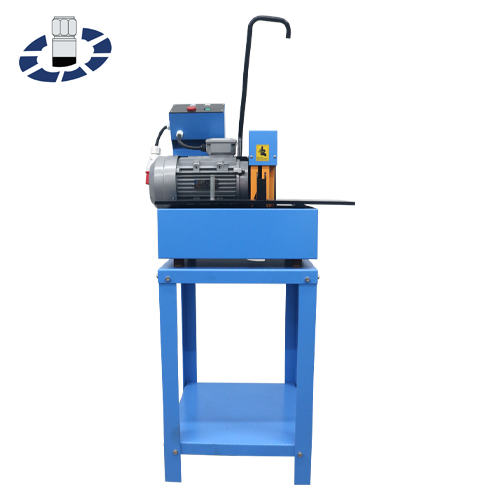

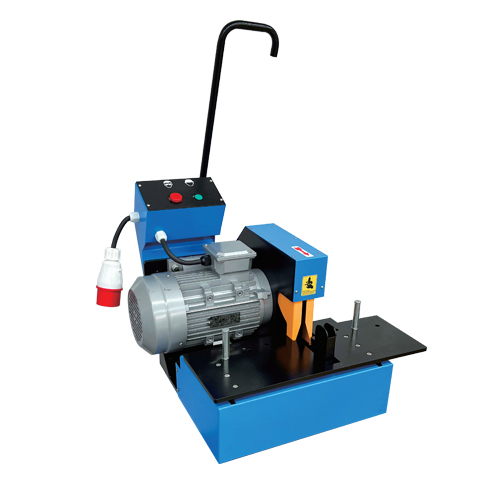

C300A Cutting Machine
Toothed Blade (high speed steel); selectable workbench; cutting up to 2 inch hoses;
Description
Package Information
Inquiry
The C300A hose cutting machine is designed to cutting up to 2 inches hose. With high speed steel of toothed blade, and manual operation, the C300A is very suitable
for making hose assembly in small and middle shops.
Features
User-friendly operation for optimal results
Workbench is selectable
Technical data
| Max hose size (inch) | 2*4SH |
| Diameter (blade) ext (mm) | 300*25 |
| Motor (kW):Tri/Mono | 3 |
| Motor (HP):Tri/Mono | 4 |
| Velocity 50Hz (rpm) | 2850 |
| Velocity 60Hz (rpm) | 3370 |
| Motor Voltage (V):Tri | 220 / 380 |
| Motor Voltage (V):Mono | 110 / 220 |
| Dimension (L×W×H) | |
| Machine (mm) | 550×360×930 |
| Machine (inch) | 22.8×23.6×36.6 |
| Package (mm) | 705×625×740 |
| Package (mm) | 27.8×24.6×29.1 |
| Weight (KG) | |
| N.W. | 78 |
| G.W. | 110 |
