C250A Cutting Machine

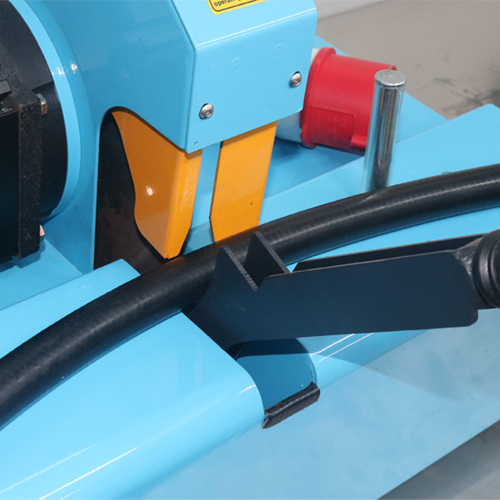

Toothed Blade (high speed steel); cutting 1.5 inch 2SN or 1 inch 4SH hoses
Description
Package Information
Inquiry

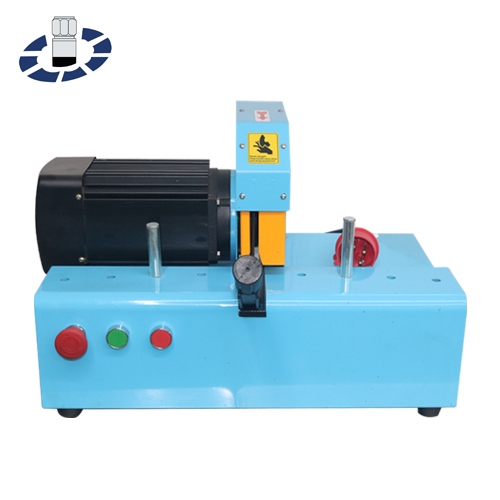

The C250A hose cutting machine is designed to cutting up to 1.5 inches or 1" for 4SH hose. With high speed steel of toothed blade, compactc design, and manual operation,
the C250A is very suitable for making hose assembly in small shops.
Features
User-friendly operation for optimal results
Compact and light design, portable and convenient
Technical data
| Max hose size (inch) | 1*4SH |
| Diameter (blade) ext (mm) | 250*25 |
| Motor (kW):3PH 380V | 2.2 |
| Velocity 50Hz (rpm) | 2850 |
| Dimension (L×W×H) | |
| Machine (mm) | 550×360×450 |
| Machine (inch) | 21.6×14.1×17.2 |
| Package (mm) | 700×580×420 |
| Package (mm) | 27.5×22.8×16.5 |
| Weight (KG) | |
| N.W. | 24 |
| G.W. | 35 |
